Plate-Tex Classic anode bags for electroplating | WINKLER
-
proven millions of times
-
economically
-
Made in Germany
Graduated price (will be deducted from the shopping cart)
| dimension | individually | from 10 pieces |
|---|---|---|
| 160x80mm | €6.10 | €5.50 |
| 750x280mm | €14.60 | €13.10 |
| 830x230mm | €14.50 | €13.00 |
| 900x130mm | €13.20 | €11.90 |
| 1200x270mm | €20.30 | €18.70 |
| 1250x375mm | €23.80 | €21.40 |
Delivery time: 3 working days
Request an individual solution
Plate-Tex Classic anode bags for electroplating – 15 µm PP filter bags (laser-welded)
Reliable electrolyte filtration for electroplating and printed circuit board manufacturing
The WINKLER Plate-Tex Classic anode bag is the proven standard for stable bath quality in electroplating. It reliably retains anode sludge and particles while simultaneously supporting a constant ion flow – for uniform layer thicknesses, less scrap, and reproducible surfaces.
Whether for mass production or demanding precision applications: Plate-Tex Classic is used millions of times in industrial applications and has been designed for high chemical and mechanical stresses in electrolyte baths.
Typical applications
The Plate-Tex Classic is suitable wherever anode abrasion needs to be controlled and retained – without slowing down the process:
- Electroplating lines (e.g. nickel plating, copper plating, zinc plating – depending on the electrolyte)
- Printed circuit board manufacturing / surface technology (high requirements for particle purity)

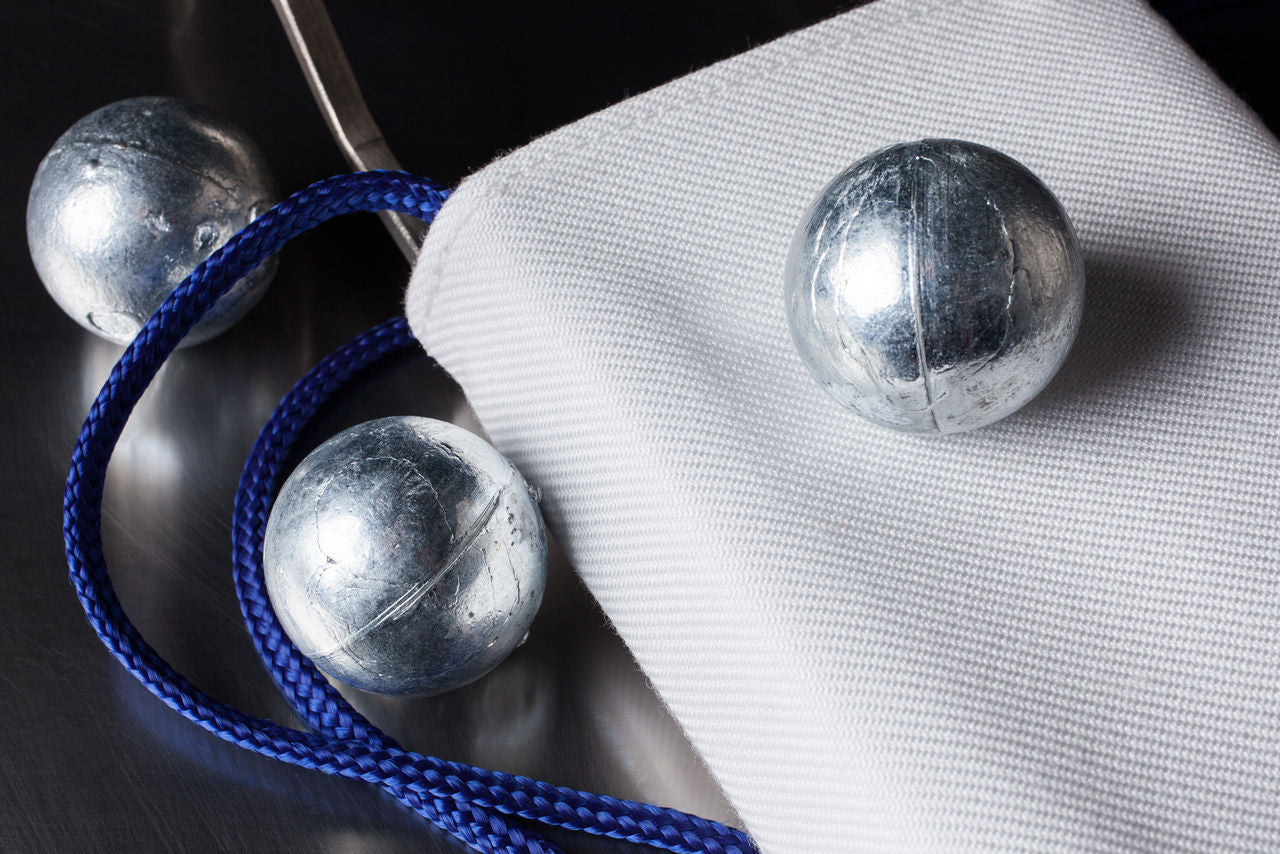

- Anode baskets, plate anodes and stick anodes
- Industrial and laboratory applications with sensitive electrolyte baths
The Plate-Tex Classic is the "all-rounder" in our anode bags and accessories category. It offers reliable protection against bath contamination in all metal and electronics manufacturing processes and is optimized for a wide range of standard applications.
Why an anode bag? Cleaner electrolyte = better surface area.
When the anode dissolves, fine sludge is inevitably produced. If this sludge enters the electrolyte, it can cause roughness, inclusions , and defects in the coating . Plate-Tex Classic forms a particle-resistant barrier with a 15 µm filter fineness – for stable processes and longer bath life.
Design & Manufacturing: Details that make the difference in service life
The Plate-Tex Classic is manufactured in Germany and is designed to ensure that filtration remains reliably effective over the long term – even with bath movement, temperature changes and chemical exposure:
- Laser-welded edges: 100% tight, no fraying, no seam holes – significantly lower particle risk.
- Washed & Thermofixed: Removes residues from fabric manufacturing and reduces contamination in the bath from the start.

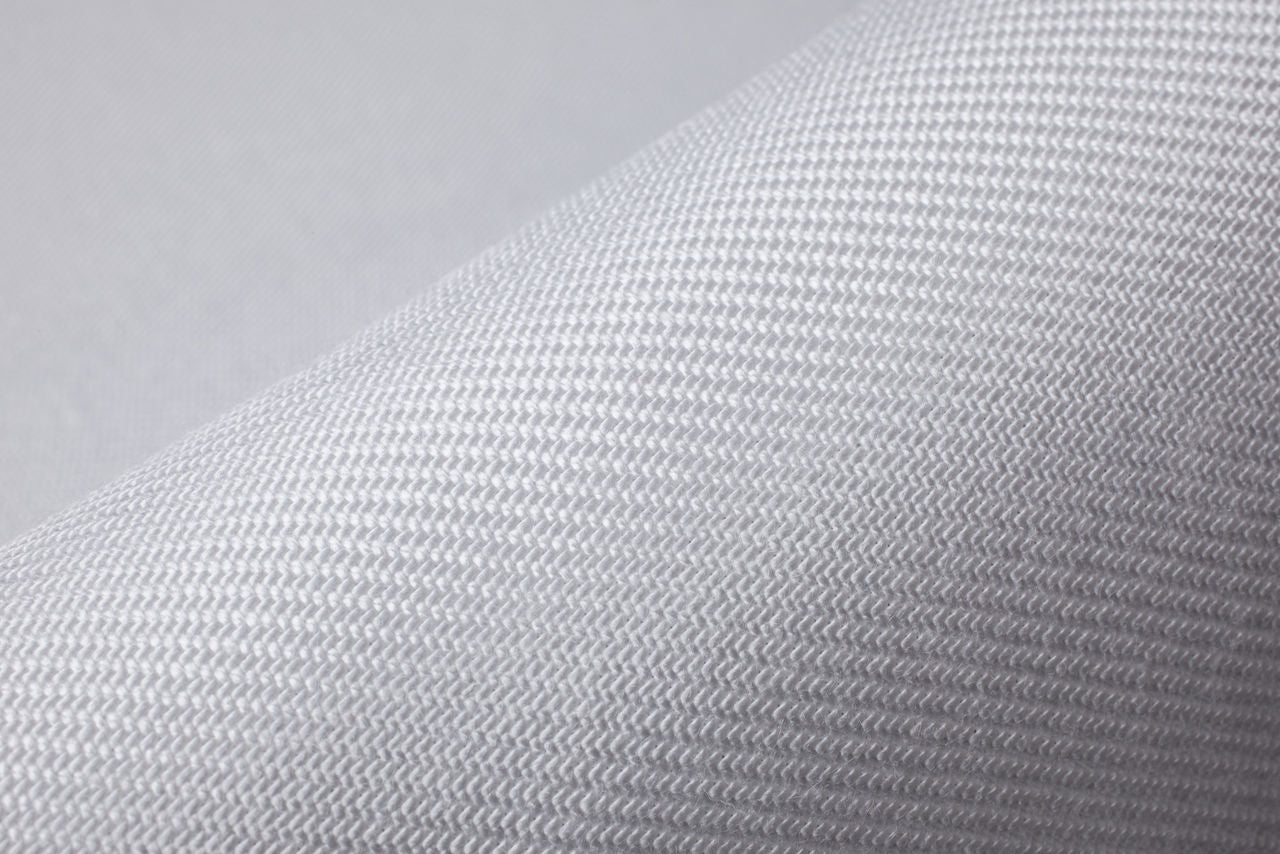

- Chemically resistant PP staple fiber yarn: Robust polypropylene for many common galvanic electrolytes.
- Mechanically robust: High tear resistance for long service life in daily operation.
Your advantages in B2B use
Plate-Tex Classic is the economical standard solution when process reliability needs to be predictable – with clean filtration and stable coating quality:
- Consistent bath quality: Reliable retention of anode sludge and particles.
- Reproducible coating: Uniform surfaces and fewer disruptions in the process.
- Long service life: 320 g/m² basis weight for robust, durable filter bags.
- Efficient ion flow: Optimal air and ion permeability – no unnecessary process bottleneck.
- Custom manufacturing possible: Perfectly fitting for anode baskets, plate or stick anodes.
- Made in Germany: Manufacturing quality for industrial requirements.
Which version is right? Quick comparison of Plate-Tex anode bags
The choice depends primarily on particle load, desired bath cleanliness, and mechanical stress:
| variant | Filter fineness | Special feature | Recommended for |
| Plate-Tex Classic | 15 µm | Laser-welded, washed & heat-set | Standard processes with high efficiency and reliable sludge retention |
| Plate-Tex micro | 5 µm | Microfiltration | Precision processes / highest bath purity |
| Plate-Tex Two | 15 µm | Double-layer composite filter | Mechanically stressed applications / maximum safety reserve |
| Plate-Tex Brillant (Organic) | 25 µm | Non-stick / easier to clean | Organic-rich electrolytes, e.g. B. Nickel electrolytes with brightening additives |
Technical specifications: Plate-Tex Classic (PP anode bag)
| material | Polypropylene (PP) |
| Fabric construction | Staple fiber yarn/staple fiber yarn |
| basis weight | 320 g/m² |
| Air permeability | 50 l·dm⁻²·min⁻¹ |
| equipment | washed & heat-set |
| Base unit | Piece |
| Filter fineness | 15 µm* (*Specification provided by tissue supplier) |
Custom manufacturing & consulting for your electroplating
Do you require custom dimensions for anode baskets or want to select the appropriate filter fineness for your electrolyte? Our filter technology experts will support you in the design process – with a focus on bath quality, service life , and process reliability . Contact us – we will configure the Plate-Tex Classic precisely to your system.
FAQ – Plate-Tex Classic 15 µm anode bags for electroplating
Frequently asked questions about the standard anode bag for galvanic electrolytes
The Plate-Tex Classic anode bag is the proven standard solution for electrolyte filtration in electroplating processes. Here you will find answers to typical questions about filter fineness, application areas, and selecting the right anode bag for stable bath processes.
