Filter cloth for chamber filter press 20 µm – F-TEX Brillant sun (6L) for precise pressure filtration
Fine filter cloth for stable filtration cycles and clear filtrates
The WINKLER F-TEX Brillant sun (6L) filter cloth is a fine filter cloth for chamber filter presses , specifically designed for applications requiring very good filtrate clarity combined with economical filtration cycles. With a filtration fineness of 20 µm, this fabric offers precise solids retention while maintaining stable permeability.
The combination of monofilament and multifilament yarn ensures a balanced ratio between particle retention, throughput, and mechanical stability . This makes F-TEX Brillant sun particularly suitable for industrial pressure filtration with constant process conditions.
When is a 20 µm filter cloth useful?
The F-TEX Brillant sun (6L) is ideal when filtrate quality and stable filtration cycles are equally important:
- Safely retain fine solids without unnecessarily long cycle times.
- High filtrate quality in industrial suspensions.
- Stable pressure filtration with reproducible results.
- Low tendency to clog under varying loads.
This yellow filter cloth was developed for precise filtration tasks. Within our selection of high-quality filter cloths, it represents a specialized solution for demanding separation processes in the chemical and raw materials industries .
Precise fabric construction for controlled filtration
The F-TEX Brillant sun is characterized by a particularly high fabric density . With 110 warp threads per centimeter , a uniform pore structure is created, enabling precise and reproducible filtration.
This defined structure ensures stable filtration properties throughout the entire service life of the filter cloth and reduces fluctuations in filtrate quality.

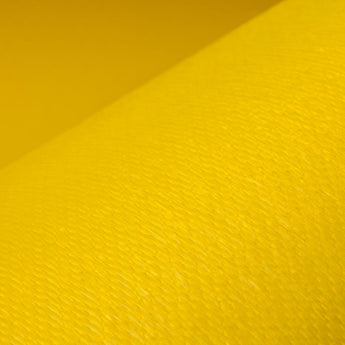

Calendered surface for optimized cake release
In many applications, cake detachment significantly determines the cycle time of the chamber filter press. F-TEX Brillant sun features a calendered surface that creates a particularly smooth fabric structure.
- Improved cake release: The filter cake detaches evenly from the cloth.
- Shorter cycle times: Faster emptying of the filter chambers.
- Less cleaning effort: Reduced manual intervention.
- Stable filtration: Consistent permeability over a long period of time.
Mechanical stability and long service life
With a basis weight of 490 g/m², F-TEX Brillant sun offers high mechanical strength for industrial pressure filtration. The fabric remains dimensionally stable even after repeated pressing cycles and ensures a reliable seal of the filter chambers.
The robust construction supports long operating times and reduces unplanned cloth changes.
Your advantages in B2B use
- Fine filtration: 20 µm filter fineness for very good filtrate clarity.
- High fabric density: 110 warp threads/cm for precise filtration.
- Calendered: Smooth surface for better cake release.
- Stable cycles: Consistent filtration over long service periods.
- Mechanically durable: 490 g/m² for industrial applications.
- Chemically resistant: Polypropylene is suitable for many process media.
- Custom-made to fit your chamber filter press.
Quick comparison: Choosing the right filter cloth
The choice of the appropriate filter cloth depends primarily on the desired filtrate quality and filtration speed:
| type | Filter fineness | character | Typical focus |
| F-TEX Compact+ (3L) | 10 µm | Ultra-fine and very dense | Maximum filtrate clarity |
| F-TEX Brilliant sun (6L) | 20 µm | Fine and very stable | High filtrate quality with stable cycle times |
| F-TEX Classic (7L) | 25 µm | Proven standard | Economic standard filtration |
| F-TEX Brilliant black (15L) | 25 µm | All-rounder with good replacement | Adhering filter cakes |
| Monofilament (67L) | 50 µm | Very open | High throughput |
Technical specifications: F-TEX Brilliant sun (6L)
| material | Polypropylene (PP) |
| Fabric construction | Monofilament / Multifilament |
| basis weight | 490 g/m² |
| Air permeability | 6 l·dm⁻²·min⁻¹ |
| equipment | calendered |
| Base unit | Piece |
| Filter fineness | 20 µm* (*Specification provided by tissue supplier) |
Assembly for your filter press
Do you require finer filtration for your solid-liquid separation? Our filter technology experts will be happy to advise you on whether the special mono/multifilament structure of the 6L cloth offers the optimal permeability for your medium without the fabric clogging prematurely.
FAQ – Filter cloth chamber filter press 20 µm (F-TEX Brillant sun 6L)
Frequently asked questions about fine filter cloths for stable pressure filtration
Filter cloths with a 20 µm filtration fineness are frequently used when high filtrate quality and economical filtration cycles are required. In the chamber filter press, the filter cloth retains the solids, while the liquid is forced through the fabric under pressure and emerges as filtrate.
When is a 20 µm filter cloth the right choice?
Especially with industrial suspensions containing fine to medium particles, this level of fineness offers stable filtration results.
What is the difference between 10 µm and 20 µm filter cloths?
Choosing the correct fineness significantly determines the filtration speed and filtrate quality in the chamber filter press.
How does tissue structure affect flow rate and filtrate quality?
A well-matched filter cloth helps to reduce pressure losses and achieve constant filtration cycles.
Why is the fabric structure important for filter cloths?
This improves the cost-effectiveness of pressure filtration, especially during regular operation.
For which applications is a 20 µm filter cloth suitable?
A 20 µm filter cloth is particularly suitable for applications with stable process conditions and consistent solids load.
